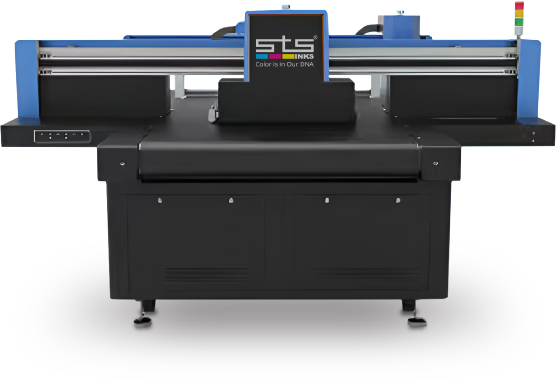

CONVEYOR TYPE CCD VISUAL
Camera Positioning UV Printer
Various specially shaped materials can be placed on the platform for automatic identification and precise product printing.
1200DPI VISUAL CAMERA POSITIONING SYSTEM
360-degree disordered placement, no need for fixtures, scanning and printing at the same time, the scanning speed can reach 1000-1500 mm/s, the printing speed fast, up to 12.5 meters per hour, and can supports printing on high-drop products.
High precision! Up to 1200 dpi, error as small as 0.1mm
CHARACTERISTICS
- The visual positioning accuracy has a breakthrough error of less than 0.1mm. Printing accuracy is as high as 1200 dpi.
- Dual guide rail design; visual positioning and spraying machine do not interfere with each other.
- AI algorithm control system.
- Pipeline printing while moving, 24-hour non-stop production.
- Industrial-grade nozzle, high-jet printing, high precision, realistic color.
- Ricoh G6 nozzle, corrosion-resistant, not easy to clog, long lifespan.
- Fast speed, comprehensive cost reduction, simple operation, wide application.
| PRODUCT MODEL | STS AI Flatbed UV Printer |
|---|---|
| PRODUCT BRAND | STS Inks |
| PRINT HEAD | 1200mm x unlimited |
| MEDIUM HEIGHT | 0 – 200mm |
| NOZZLES | 5 – 10 (Optional) |
| PRINT PRECISION | 300 – 1200dpi |
| INK DROP | 5PL |
| COLOR SCHEME | CMYK Lc Lm W V |
| CURING METHOD | UV Water-cooled LED |
| RIP SOFTWARE | ———– |
|---|---|
| POWER | 220V / 50-60Hz / 3500W |
| PRINT SPEED | 12m2 – 80m2 / Hour (Print head con guration) |
| ENVIRONMENT | Temperature 20-28°C Relative Humidity 40-60% |
| MACHINE SIZE | 2840x2830x1510mm |
| WORKING MODE | Single machine assembly line operation |
| OPTIONAL LOADING METHODS | Manipulator, vibration plate, elevator, etc. |
| POSITION SYSTEM | Visual camera positioning |
| PRINTING SPEED | With the same nozzle as the atbed, it can print in real time without stopping. |
