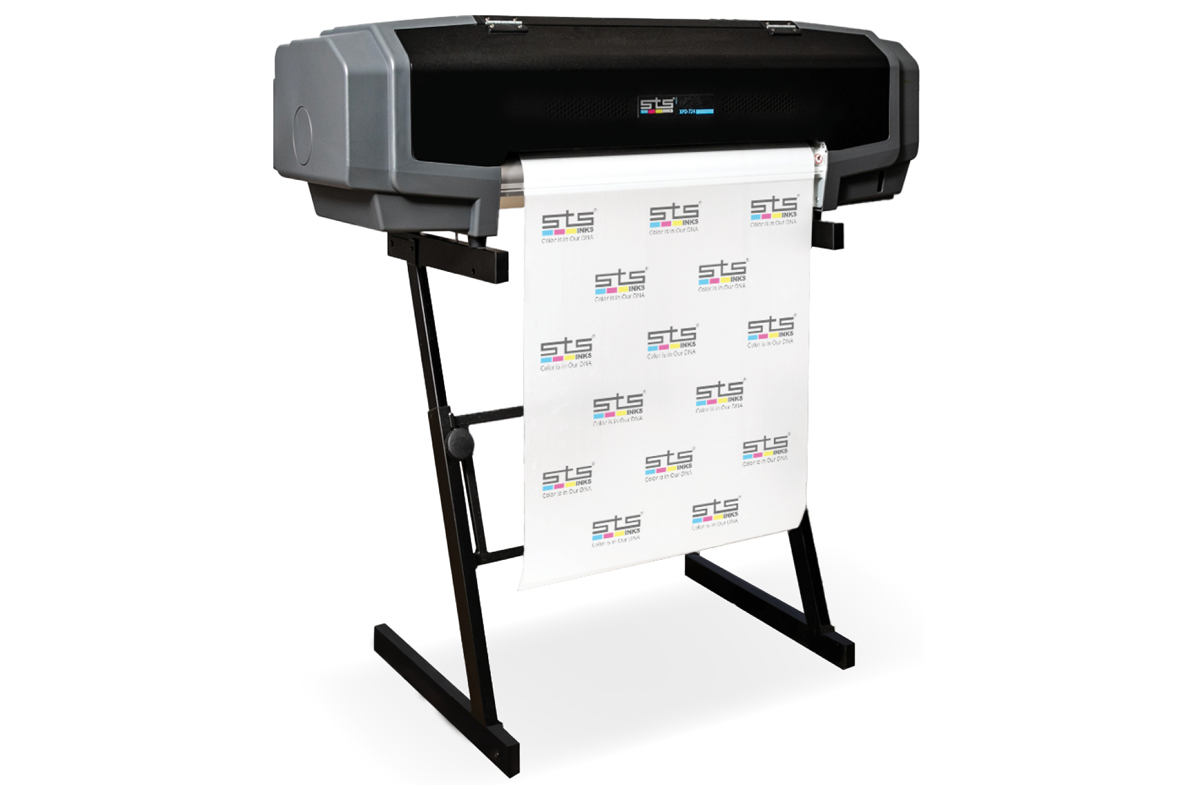

STS XPD 724 DTF Printer
xpd 724 back view
XPD 724 CMYK cartridges
XPD 724 Side
XPD 724 WW CL CL cartridges

STS XPD-724 DTF Printer

With enhanced user-friendly operation and maintenance, the STS XPD-724 DTF Printer offers high production and high-quality output.

The enhanced performance characteristics are associated with a built-in white ink circulation system that allows for the free unobstructed flow of ink directly to the print head providing optimal results. It perfectly pairs with STS’s DTF ink, which offers users excellent color gamut and outstanding durability.

New Features of the STS XPD-724:

  • Built-In Internal Ink Circulation – Increased Run Time Intervals
  • Reduced Operating Costs
  • Upgraded Wave Form – Reduced Graininess at High Speeds
  • New ICC Profiles – G7
  • Improved Ink Delivery System – 24v Increased Cycling
  • All-Inclusive Sales Package
  • Matte Gray Finish
  • Comparable Price Point to the 628D
  • Less Maintenance than Previous Models
724 XPD
CIT Banner
Product Inquiry
Financing
MMP Capital
Financing
Product Inquiry

XPD-724 Specifications

Print Method Drop-On Demand, Piezo Drive
# of nozzles/ # of heads (180 x 8 rows)/ 1 head
Ink type DTF
Variable dot Yes
Minimum droplet size 3.5 pl
Print modes 720/540/360 dpi 12 modes +
Color options CMYK +2W + 2 Cleaning
Maximum resolution 1440 dpi
Head height Low: 12mm / High 2.5mm
Maximum media width 24.8 inches
Maximum print width 24.4 inches
Heating system Pre/Post
Media roll diameter / Core 6″ maximum / Core 3″ or 2″
Media Auto Cut Standard
RIP software SAI / White RIP STS-DTF
Power requirements 110 / 220 Volt
Operating temperature 68°F – 75°F
Operating humidity range 35% – 45%
Dimensions (printer) WxDxH 47″ x 17″ x 14″
Dimensions (printer with stand) 47″ x 23″ x 46″
Weight (printer) Printer 70 lbs / Stand 1 lbs
Weight (shipping info) Call for quote
Limited warranty 1 Year

Part Number Description Quantity Unit Unit Price
STS.XPD-724.DTF STS XPD-724 DTF Printer with internal ink circulation 1 Piece 10,999.00
STS.DTF.STD STS/MUT 628D Direct to Film Stand 1 Each 0
FLEXI.RIP Flexi rip Direct to Film EDITION 1 Piece 0
XPD.DTF.500.C XPD DTF 500ml Cartridge – Cyan 1 Cartridge 0
XPD.DTF.500.M XPD DTF 500ml Cartridge – Magenta 1 Cartridge 0
XPD.DTF.500.Y XPD DTF 500ml Cartridge – Yellow 1 Cartridge 0
XPD.DTF.500.K XPD DTF 500ml Cartridge – Black 1 Cartridge 0
XPD.DTF.500.W XPD DTF 500ml Cartridge – White 2 Cartridge 0
XPD.DTF.500.CL.7 XPD DTF 500ml Cartridge -Clean Solution Slot 7 1 Cartridge 0
XPD.DTF.500.CL.8 XPD DTF 500ml Cartridge -Clean Solution Slot 8 1 Cartridge 0
XPD.DTF.220.CL STS/MUT DTF 220ml Cart.-Cleaning Solution 8 Cartridge 0
DTF.FILM.24.COLD.R Film 24’’ X 328’ DTF Cold Peel ROLL 1 Piece 0
DTF-P-1 Direct to Film-P-1 TPU Powder- Low Temp 225 F – 2 KG 1 Kg 0
WB.DTF.8001.500ML STS Direct to Film Nozzle Busting Solution 500ml 1 Piece 0
Printer diagram
