STS Inks 3200 UV Single Pass UV Printer

Printer Features

The printer uses a special PLC control system with a patented print headboard unique to this printer.
This guarantees a stable printing system and has features like image feathering, variable data printing and 4 levels of gray scale.
The model S3200 can print multiple tasks without stopping. This ensures a continuous workflow.
The printer has an ink supply system that incorporates a degassing feature that gets rid of air automatically in the ink supply chain that can cause dropouts.
The printhead has a built-in ink circulation with automatic pressure adjustments that are part of the overall ink delivery system.
This robust printhead can remain trouble free for over 2 years. We have even incorporated a head strike failure detection system to further enhance the longevity of the printhead.
The continuous feed delivery belt, has precise automatic correction for any skew deviations and has well-placed suction holes. These features ensure that the placement of printing materials are correctly positioned as they move through the printing platform.
The printer is equipped with an automatic calibration system that is very sensitive, an automatic printing positioning system, and many sensors to make sure everything is positioned and printed accurately at high production speeds.
This digital high-speed printer is easy to use – just switch it on and it’s ready to print. It is cost effective, fast, and efficient. You don’t need to make fixtures or templets. Just import your image into the software and print. The maximum length of a single image is 16.4 feet long. Plus, it can print with high accuracy, up to 600 dpi x 1200 dpi. It’s fastest speed is 164 ft. per minute

Applications

The Model S3200 UV single-pass digital printer is an advanced printing system for full-color almost instant printing. It can print on various plastic products such as PVC, ABS, acrylic, vinyl and more. It’s versatile enough to print color photos on glass, metal, ceramics, foam boards, wood, and cardboard too.

SKU: sts-3200-uv-flatbed-printerCategories: Printers, UV Flatbed Printers

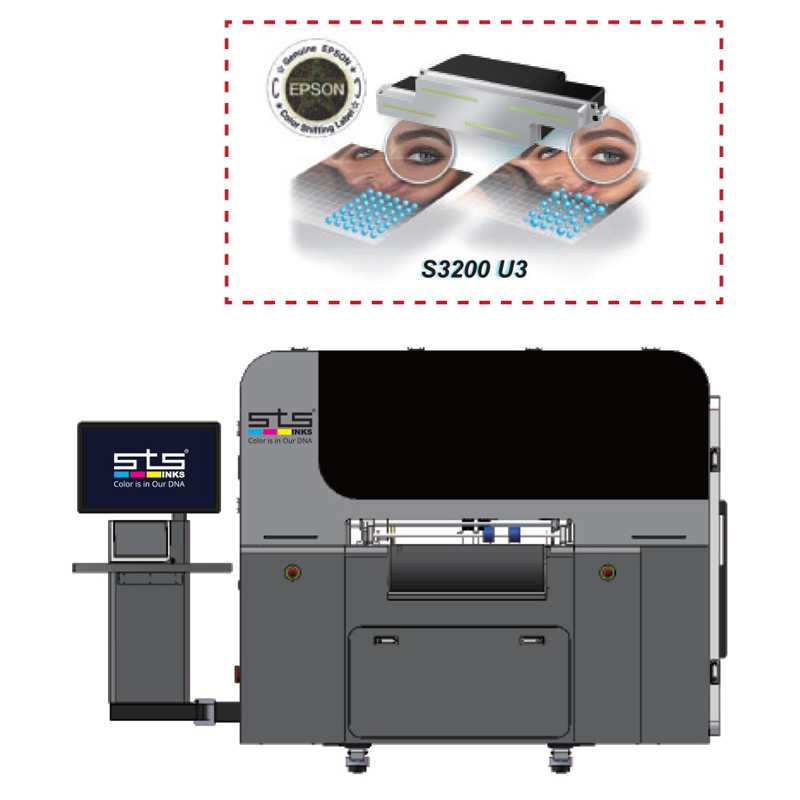

Nozzle Advantages

The original S3200 U3 print head authorized by EPSON® has variable ink dots and can do four-level gray scale printing.
The S-shaped design saves space and makes it easy to expand, which helps increase production efficiency
It can print variable data and handle multiple tasks without stopping.
The print head has its own ink circulation system, including automatic ink pressure and a double negative pressure ink supply system.
The high-precision positioning holes make it easier to replace and install without needing extra adjustments.
We created a special circuit board and software for the print head ourselves.
We have several technologies protected by patents that are unique to us.

Nozzle Specifications

Nozzle Model: S3200-U3
Ink Type: UV Ink
Effective Print Width: 120mm / 230mm / 345mm / 460mm / 575mm / 690mm / 805mm / 920mm / 1035mm / 1150mm
4.72” / 9.05” / 13.58”/ 18.11” / 22.63” / 27.16” / 31.69” / 36.22” / 40.74” / 45.27”
Ink Drop Volume: 4.8-9-15 (U3)
Printing Resolution: 600 x 600, 600 x 1200
Nozzle Number: 3200 (Net 2,840)
Nozzle Row Number (inch): 1/300
Nozzle Row Number: 2
Nozzle Size: 5.92” x 1.18” x 2.04” / 150.4mm x 30mm x 52mm
Nozzle Weight: 8 oz / 235g
Injection Frequency: 48 (single point), 24KHz (multiport)
Corresponding Ink Viscosity: 8-9 mPa•s

Printer Specifications

Product Name: UV Digital Printing Machine

Brand: STS Inks
Printhead: S3200 U3
Colors: C / M / Y / K / W
Ink Type: UV Ink
Applications: Various Plastic Products, Acrylic, Hollow Board, Coated Paper, Wood Board, Glass, Ceramic Tile, Cardboard, etc.
Printing Speed: 600dpi x 1200dpi: 49.21ft/min – 15m/min • 600dpi x 600dpi: 114.82ft/h – 35m/min
600dpi x 300dpi: 164.04ft/h – 50m/min
Feeding Height: Max 100mm
Auto Feeder: Optional
Customized Service: Yes
After-Sale Service: 24/7 Online Service / Lifetime After-Sales / On-Site Engineer Service

Printer Model: SU120/SU230/SU345
