Made in USA
Printer Details
Master Level Intelligent Engine
- THK high precision silent guide rail.
- 1.7m/s linear motor.
- Automatic media thickness detector.
- High-sensitive intelligent anti-crash system.
- Multi-row (max 6 rows) compatible printhead con guration.
Super Stable All-Steel Frame
- All components are assembled, not welded; special steel is used to ensure long-term operation without any flatbed deformation.
Ultimate parts combination
- A Fuji servo motor and grinding lead screw from Taiwan ensures high-precision printing.
- Adjustable suction system allows a user-friendly efficient operation.
- Durable silent suction fan from Taiwan.
PLC control system
Our Research & Development team developed an intelligent vacuum absorption control and an intuitive touch control system, significantly reducing the need for physical accessories.

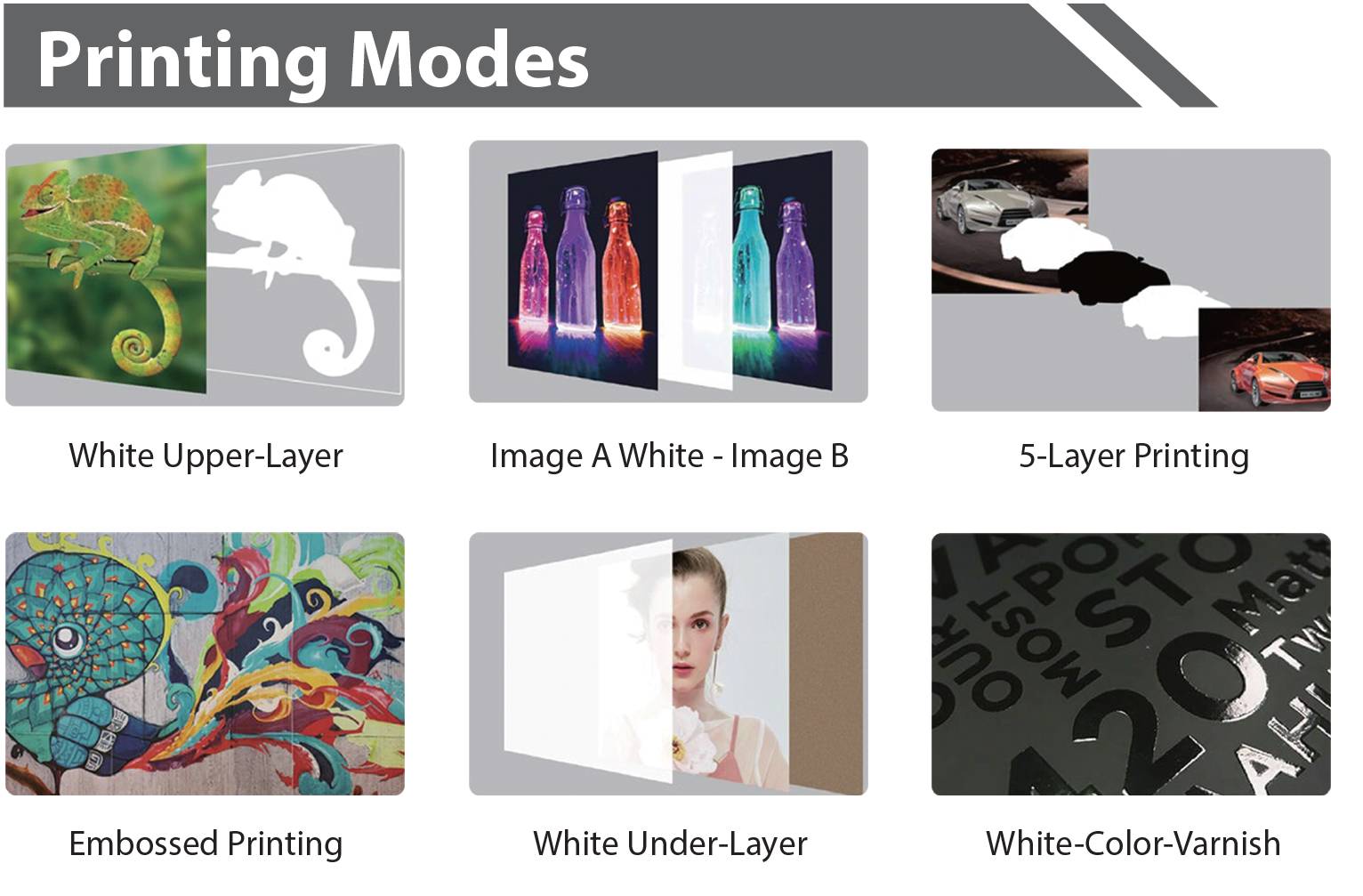

Expanded solutions for more applications
- High drop accurate jetting for curling materials.
- Stable white ink jetting for embossed effects.
Industrial rigid materials output
- User-friendly mechanical design allows easy loading and unloading of materials.
- Printing halts automatically during unexpected events to save time and cost.
- High precision alignment ensures industrial output.

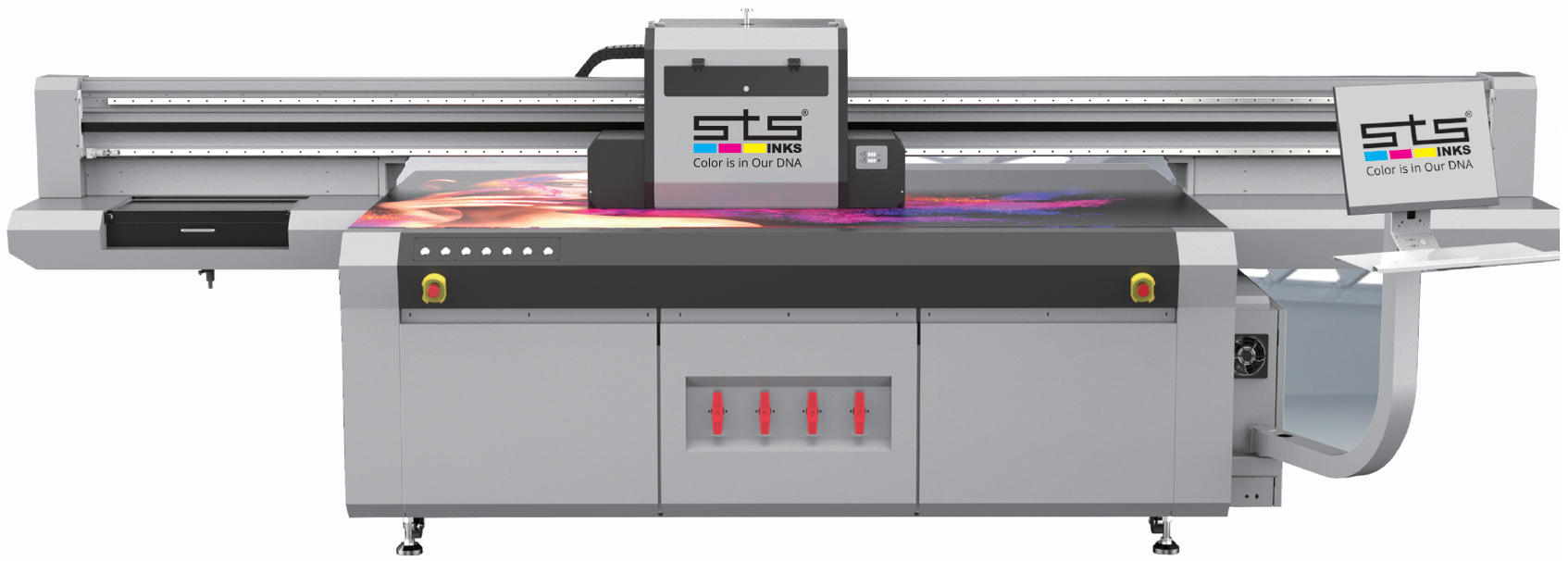

STS 2512 UV Printer Specifications
| Head Qty | 3-8pcs |
|---|---|
| Resolution | Max 720 x 2400dpi |
| Printhead – Ricoh GEN5 | Draft Mode | 592sq ft/h / 55m2/h |
|---|---|---|
| Production Mode | 366sq ft/h / 34m2/h | |
| Quality Mode | 280sq ft/h / 26m2/h |
| Printhead – Ricoh GEN6 | Draft Mode | 753sq ft/h / 70m2/h |
|---|---|---|
| Production Mode | 484sq ft/h / 45m2/h | |
| Quality Mode | 377sq ft/h / 35m2/h |
| Color | K / C / M / Y / LC / LM / W / V Optional |
|---|---|
| Printing Size | 100 x 51 inches / 2540 x 1300mm |
| Printing Thickness | 0-4 inches / 0-100mm |
| Data Interface | USB |
| PC | Windows 10 / Windows 11 |
| Printing Media | Glass, Ceramic, Metal, PVC Board, Acrylic, Wood, PU, Wallpaper etc. |
|---|---|
| Ink Type | Eco-friendly UV-curable Ink |
| Input Format | Adobe Postcript, Level 3, PDF, JPEG, TIFF, EPS, AI |
| Curing | High-effect UV LED |
| Printer Weight | 3,417 pounds / 1,550 KG |

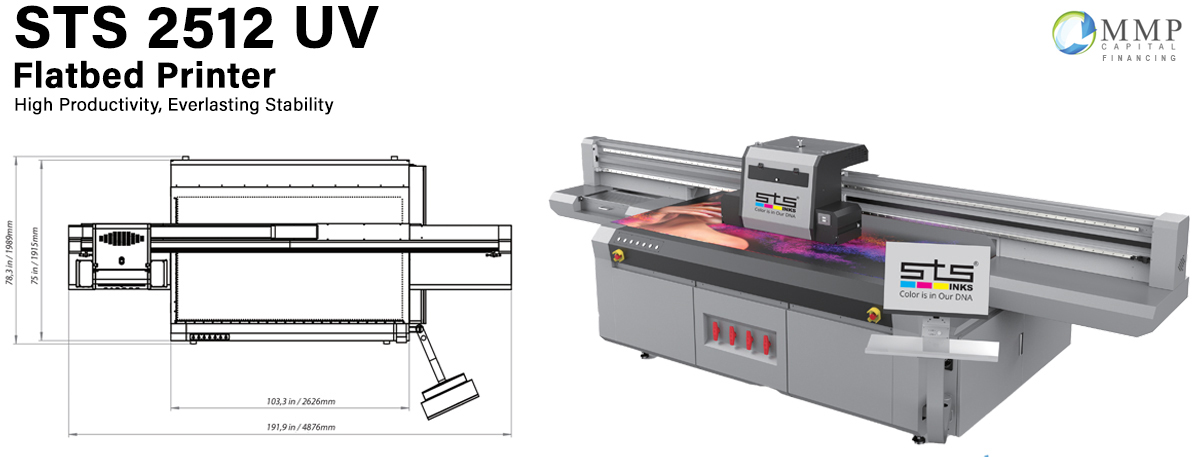

| Printer Size | 183 x 87 x 63 inches / 4650 x 2200 x 1600 mm |
| Power | 6.5kw |
| Power requirement | Single phase AC 208-240C+10%. 50/60Hz. 32A |
| Environment | Independent, clean, low dust, less light, good ventilation workshop |
| Temperature | 18°C – 30°C / 64°F – 86°F |
| Humidity | 30% – 70% (no condensation) |
| Ventilation | It is recommended to use an overhead exhaust fan 600 cfm |
Specifications are subject to change without prior notice.
