Made in USA
Printer Details
Master Level Intelligent Engine
- THK high precision silent guide rail.
- 1.7m/s linear motor.
- Automatic media thickness detector.
- High-sensitive intelligent anti-crash system.
- Multi-row (max 6 rows) compatible printhead con guration.
All-Steel Frame Support Oversized Bed
- A flatebed size of 3200 x 2000 mm provides a wide range of large printing sizes.
- Enhanced all-steel frame ensures surface stability during long-term operation.
- The use of unwelded bearing parts and reinforced structure prevents any surface deformation.
Ultimate parts combination
- A Fuji servo motor and grinding lead screw from Taiwan ensures high-precision printing.
- Adjustable suction system allows a user-friendly efficient operation.
PLC control system
Our Research & Development team developed an intelligent vacuum absorption control and an intuitive touch control system, significantly reducing the need for physical accessories.
Expanded solutions for more applications
- High drop accurate jetting for curling materials.
- Stable white ink jetting for embossed effects.
Industrial rigid materials output
- User-friendly mechanical design allows easy loading and unloading of materials.
- Printing halts automatically during unexpected events to save time and cost.
- High precision alignment ensures industrial output.

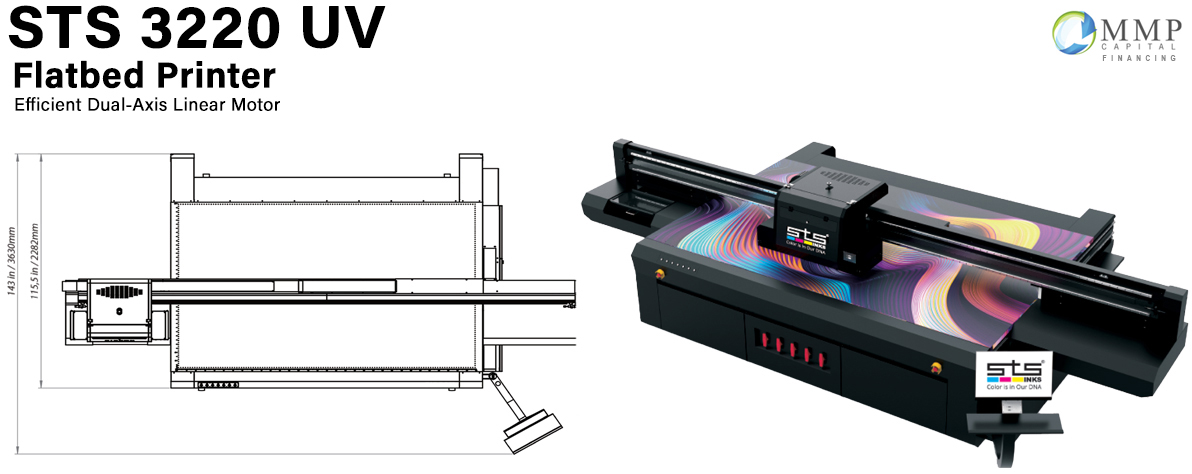

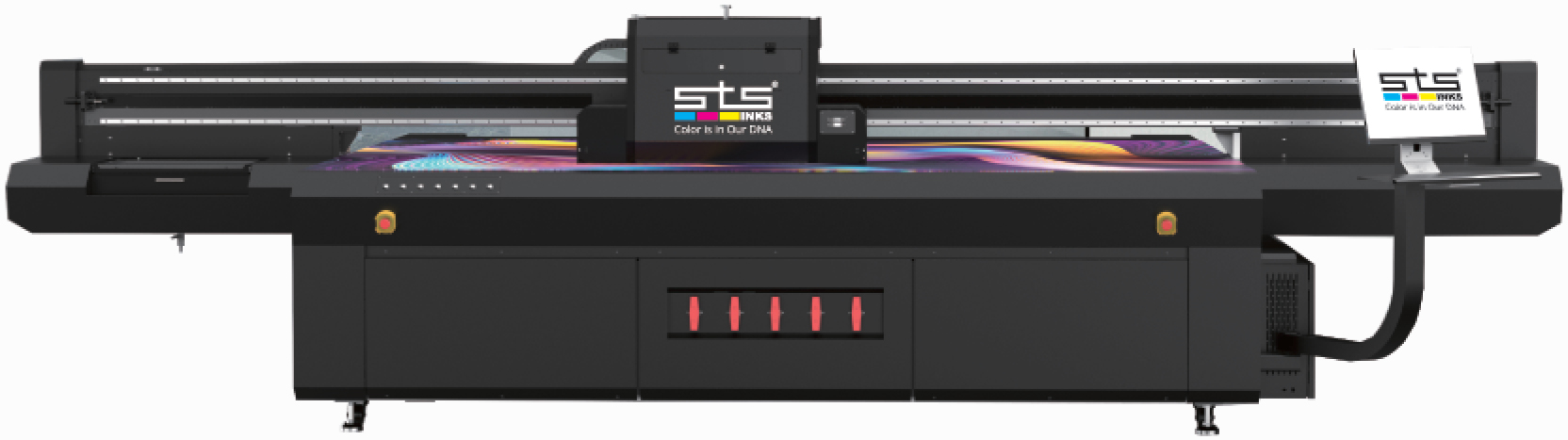

STS 3220 UV Printer Specifications
| Head Qty | 3-8pcs |
|---|---|
| Resolution | Max 720 x 2400dpi |
| Printhead – Ricoh GEN5 | Draft Mode | 645.8sq ft/h / 60m2/h |
|---|---|---|
| Production Mode | 409sq ft/h / 38m2/h | |
| Quality Mode | 301sq ft/h / 282/h |
| Printhead – Ricoh GEN6 | Draft Mode | 818sq ft/h / 76m2/h |
|---|---|---|
| Production Mode | 527sq ft/h / 49m2/h | |
| Quality Mode | 409sq ft/h / 382/h |
| Color | K / C / M / Y / LC / LM / W / V Optional |
|---|---|
| Printing Size | 126 x 78 inches / 3200 x 2000mm |
| Printing Thickness | 0-40 inches / 0-1000mm |
| Data Interface | USB |
| PC | Windows 10 / Windows 11 |
| Printing Media | Glass, Ceramic, Metal, PVC Board, Hollow Sheet, Acrylic, Leather, Wood etc. |
|---|---|
| Ink Type | Eco-friendly UV-curable Ink |
| Input Format | Adobe Postcript, Level 3, PDF, JPEG, TIFF, EPS, AI |
| Curing | High-effect UV LED |
| Printer Weight | 3,970 pounds / 1,800 KG |
| Printer Size | 220 x 110 x 63 inches / 5600 x 2780 x 1600 mm |
| Power | 6.5kw |
| Power requirement | Single phase AC 208-240C+10%. 50/60Hz. 32A |
| Environment | Independent, clean, low dust, less light, good ventilation workshop |
| Temperature | 18°C – 30°C / 64°F – 86°F |
| Humidity | 30% – 70% (no condensation) |
| Ventilation | It is recommended to use an overhead exhaust fan 600 cfm |
Specifications are subject to change without prior notice.
