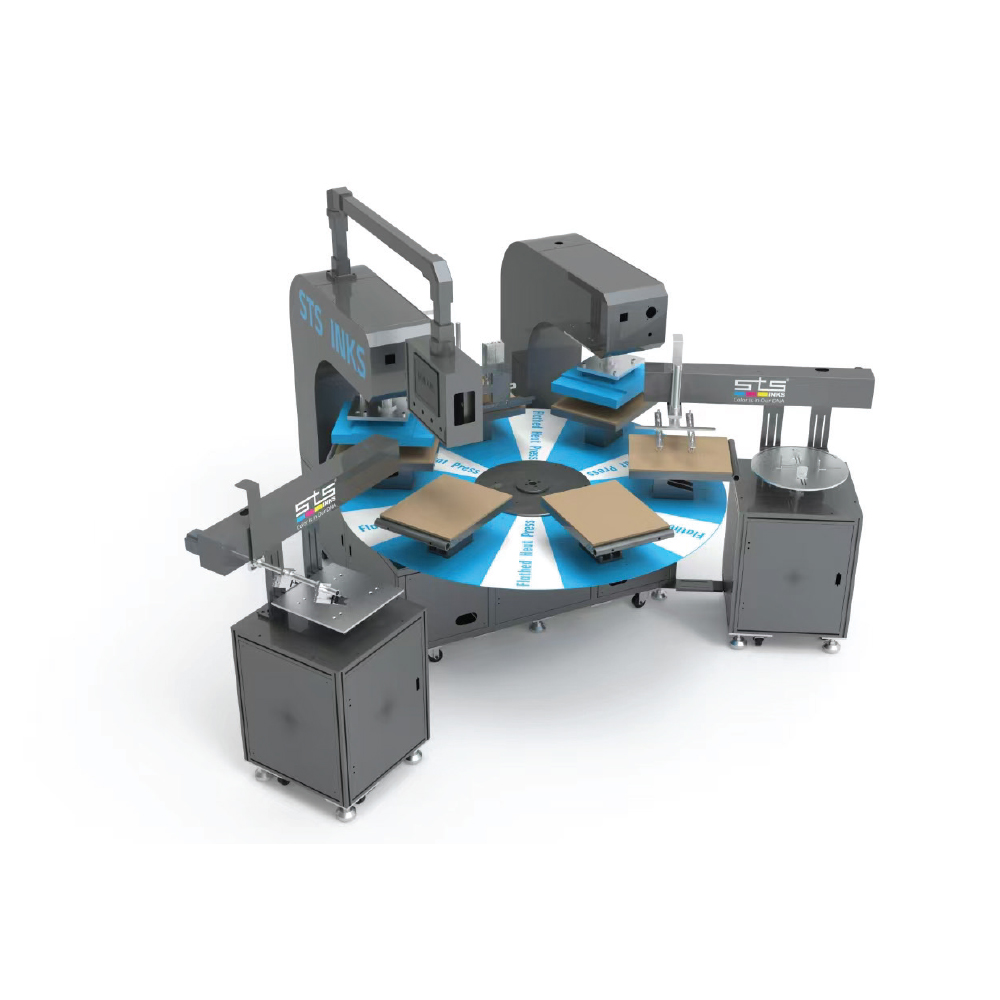

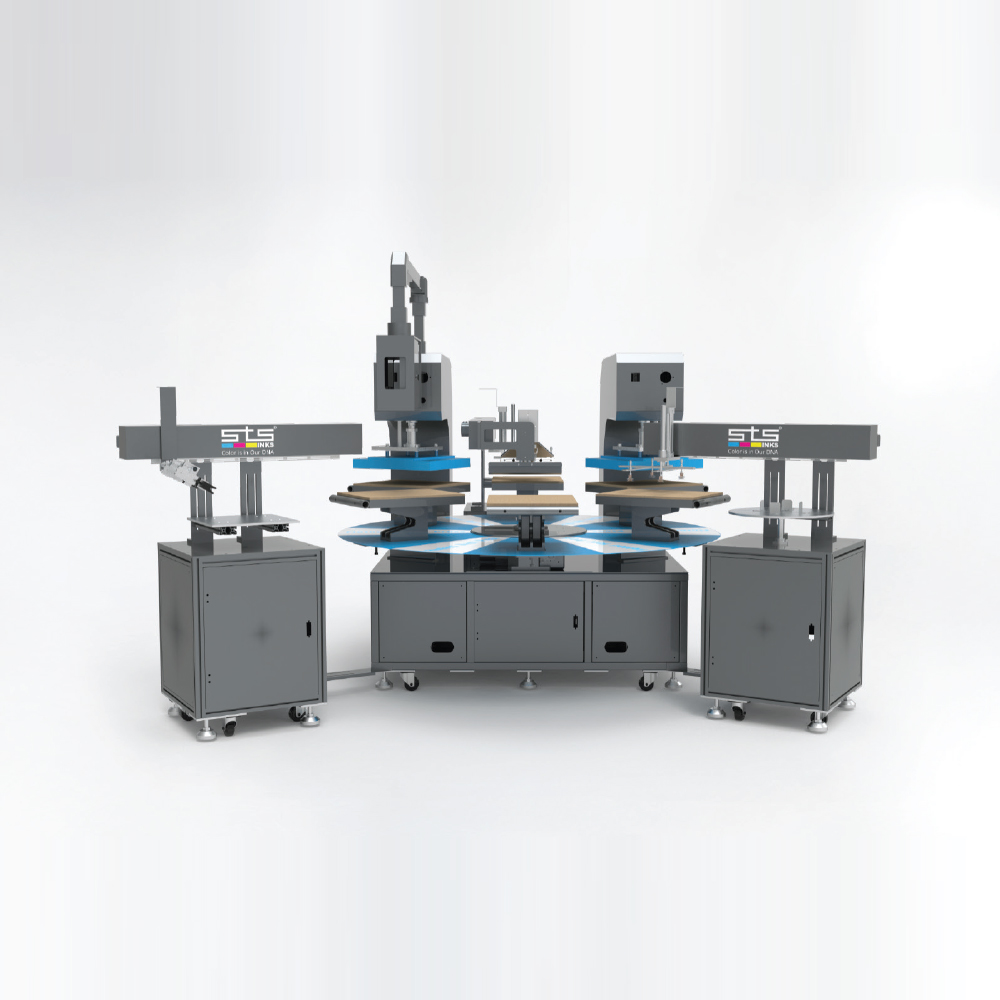

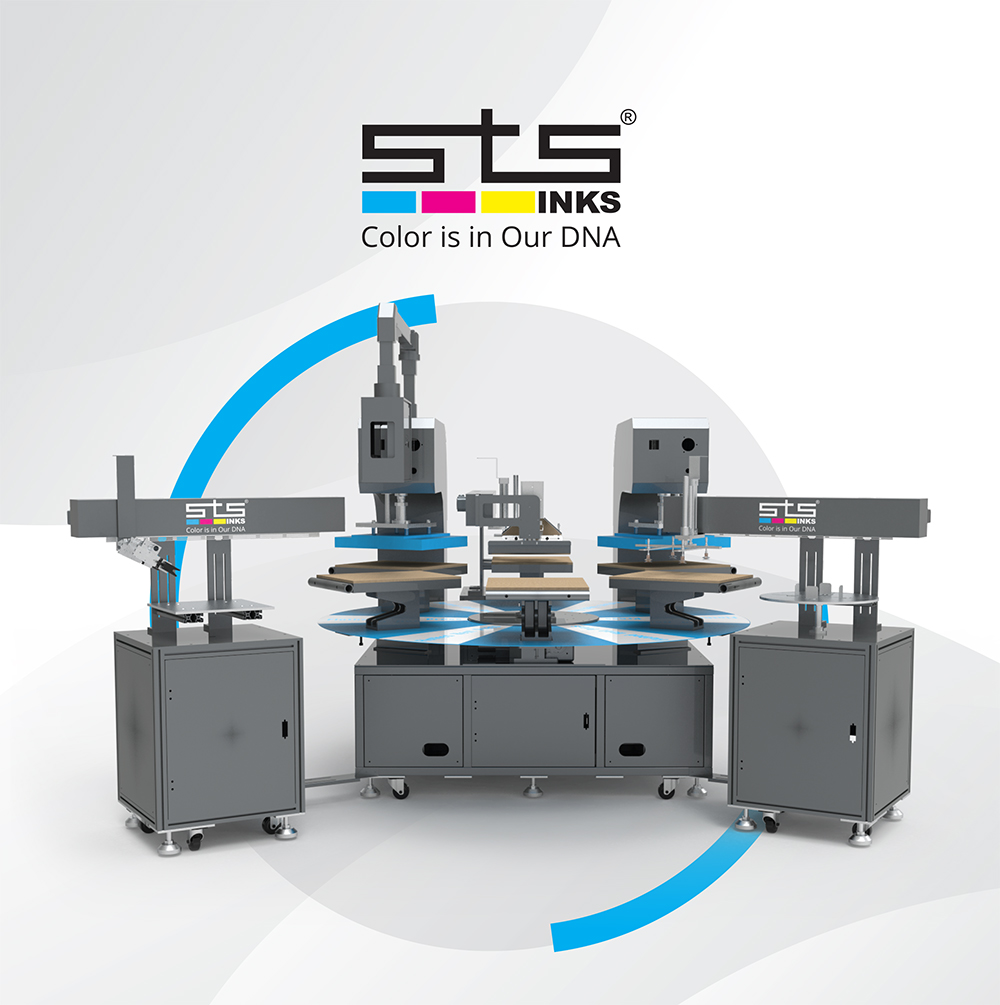

STS AI 360 Autopress System

Introducing the STS AI 360 Autopress System—a fully automated, 6-stage solution designed for serious efficiency.
With its double-press feature and 360° rotation, it delivers consistent, high-quality results with zero manual effort.
From precise alignment to flawless pressure and cooling, every detail is handled seamlessly.
You save time, reduce labor, and increase output—without sacrificing quality.
This is the next evolution in heat pressing.

SKU: DTF.H.PRESS.360 Category: Heat Press Systems

MACHINE
Parameters

PRODUCT MODEL	STS AI 360 Autopress System
PRODUCT BRAND	STS Inks
TYPE	Heat Press Machine
COLOR	Grey and Cyan
AUTOMATIC GRADE	Auto/Semi-auto/Manual PLC Touch Screen Programmable
MAX PRESSING SPEED	3 Seconds a T-shirt
WORK AREA	4060cm, 4050cm, 3838cm 15.7523.63in, 15.75*19.69in, 14.96×14.96in
ROTRARY PRESS (1/2)	276969 – 1400 LBS
ROTRARY PRESS (2/2)	583262 – 800 LBS

TEMPERATURE RANGE	0 – 399 Degree
TIME RANGE	0 – 999s
PACKING	Seaworthy Wooden Case
HEATING PANEL POWER	6kw
VOLTAGE	110v/220v
POWER	5kw
PACKAGE SIZE	Carousel Heat Press: 220175175cm / 86.6168.9068.90in Placement Table: 14580155cm / 57.0931.561.03in
PACKAGE WEIGHT	1000kg / 2204.62lb
APPLICABLE INDUSTRIES	Fabric/Garment, Textiles/Curtains, Leather/Cushion, Concave/Convex Embossing, Perlescent plate/Metal plate

UPGRADE
Part

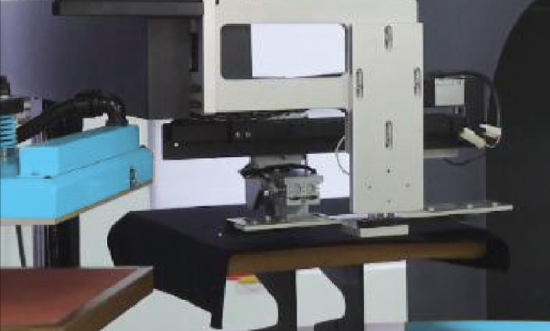

AUTOMATIC FILM TEARING WITH ADVANCED MOTOR CONTROL Replaces tradicional manual screw tightening, more convenient and faster.

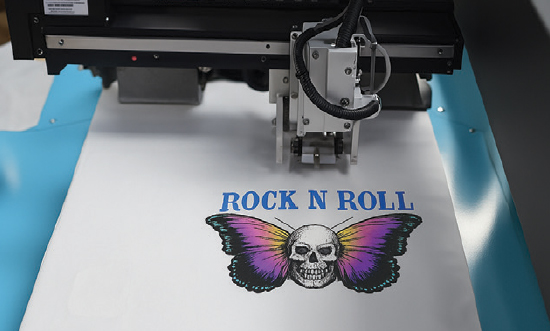

EASILY PEEL OFF FILMS OF VARIOUS SIZES Traditional machines can only tear off one film at a time. After upgrading, the machine can tear off 2-3 films at multiple angles at the same time. Large pictures / Small labels / Small logos can all be torn off at various angles.

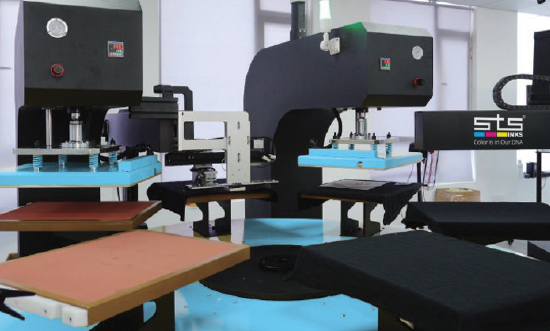

SIX STATIONS The traditional machine only has four stations to operate, but after upgrading, it has been increased to six stations, which is more efficient.

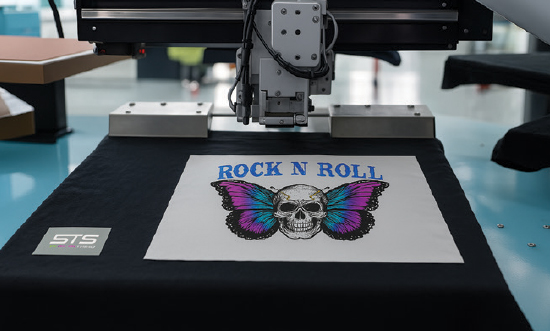

FASTER FILM TEARING SPEED It used to take 10 seconds to tear one piece, but now it takes 3 seconds to tear one piece.

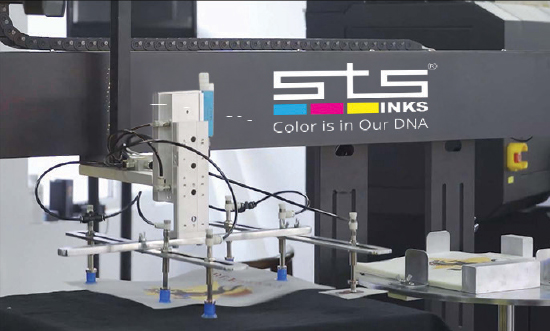

FILM VIBRATION ENSURES SINGLE FILM ADHESION Film vibration is to prevent the accumulation of static electricity, ensuring that only single film adheres to the surface each time.

FEATURES

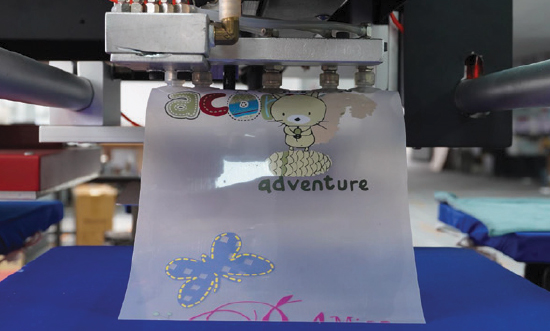

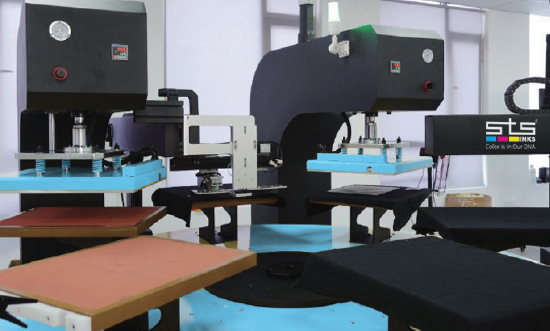

AUTOMATIC SUCTION & RELEASE PET FILM It adopts imported silicone vacuum suction cups and uses pneumatic pressure pump to provide power to automatically suction PET film and release it on the surface of the substrate.

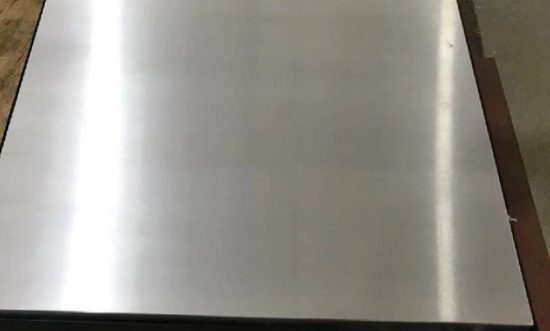

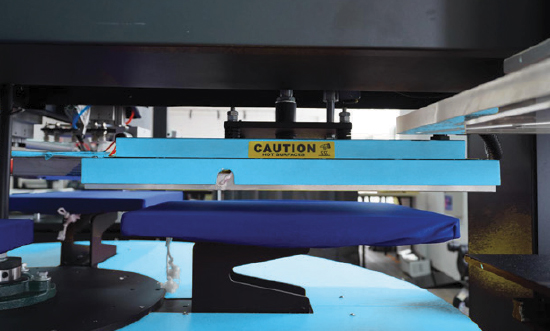

IMPORTED AVIATION ALUMINUM PLATES The four stations are all made of 3CM imported aviation aluminum plates. High flatness and heated evenly. The error between the center temperature and edge temperature of the plates is less than ±1degree. Service life is up to 20 years and not easily deformed.

SAVE COST & IMPROVE EFFICIENCY Automatic integrated heat press carousel reduces labor costs and improves production efficiency. It can produce one T-shirt every 3 seconds at the fastest.

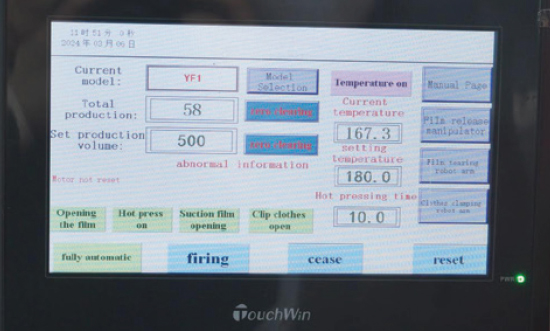

SMART PLC TOUCH SCREEN PLC touch screen, full-automatic, semi-automatic, and manual modes are optional, and the temperature, quantity, speed, and transfer pressure can be preset, easy to operate.
