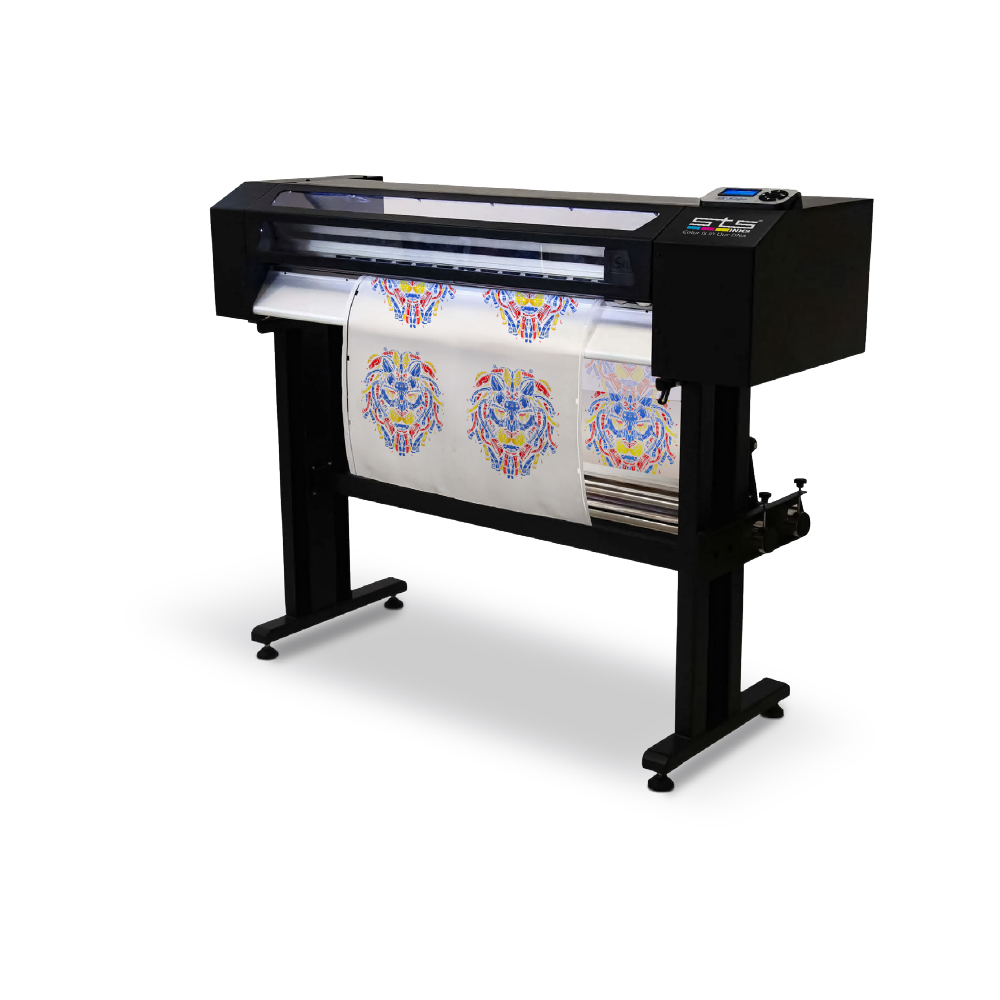

Download Operating ManualSTS AUTOMATIC X/Y
TRIMMER CUTTER
PRODUCT FEATURES
NO HAND
CUTTING
CCD SCAN
MARKS
FIXED-LENGTH
CUTTING
LARGE
MEMORY
- Cuts to fixed lengths automatically.
- Uses CCD Camera and laser sensors.
- Double round blade cutting system.
- Can cut vertical and horizontally.
- Simple LCD Control Screen and bottons.
- Auto slitting and cutting for differenciated sizes.
DOUBLE ROUND BLADE
CUTTING SYSTEM
CCD CAMERA
SYSTEM
SIMPLE LCD
CONTROL SCREEN
SPECIFICATIONS
| MAX CUTTING WIDTH | 29.5 in / 750 mm |
|---|---|
| MAX CUTTING THICKNESS | 0.02 in / 0.5 mm |
| CUTTING SPEED | Adjustable – 5 speeds |
| CUTTING METHOD | Double Round Blade |
| BLADE MATERIAL | High Strength Steel |
| BLADE LIFE | Over 50,000 cuts |
| CUTTABLE MATERIALS | DTF Film, Paper, Photo Paper, Transparent Poly Propelene Adhesive, etc. |
| CUTTING MODES | Auto Mode: Detects print lines and auto cuts Fixed-Length Mode: Cuts set length repeatedly |
| POSITIONING | Built-In CCD Carema System |
| CONTROL PANEL | LCD Blue Sreen with Tactile Buttons |
|---|---|
| MOTOR TYPE | DC Servo Motor |
| POWER USAGE | Up to 350 Watts |
| VOLTAGE OPTIONS | 100 VAC – 120 VAC | 50/60Hz | Max current 6.8A 200 VAC – 120 VAC | 50/60Hz | Max current 3.4A |
| OPERATING ENVIRONMENT TEMPERTURE | 41°F to 95°F / 5°C to 35°C Humidity: 35% to 70% (Non-Condensign) |
| MACHINE DIMENSIONS | 52×16.7×11.1 in / 1320x424x282 mm |
| PACKAGE DIMENSIONS | 63.7×23.9×24.2 in / 1618x608x615 mm |
| GROSS/NET WEIGHT SPACED | 245 lbs / 152lbs | 111 kg / 69 kg |
APPLICATION DISPLAY
Synthetic
PP Paper
Paper
Light Box
Cloth
Oil
Canva
Wallcovering
Transparent
PP Adhesive
