Made in USA
| Model | STS S604 |
|---|---|
| Printing systems | I3200 Epson printhead, high quality up to 2400 dpi |
| Nozzle Number | 4*i3200 Print Nozzles CMYK+W+Varnish+Glue 3*i3200 Print Nozzles CMYK+W+Varnish |
| Print Accuracy/Speed | 4 pass: 12m2/h | 6pass: 8m2/h | 8pass: 5m2/h 4 pass : 129ft2/h | 6pass: 86ft2/h | 8pass: 53ft2/h |
| High Printing Quality | VSD Technology |
| Media Heater | Pre/Post Heater(Can be controlled separately) |
| Print Interface | USB2.0 |
| RIP Software | IneditTM neoStampa / CADlinkTM Digital Factory 11 / FlexiPRINT |
| Voltage | AC110V+/-10% |
| Operating Environments | Temperature: 20°C-30°C | 68F° – 86°F Humidity: 35%RH-65%RH |
| Power | 200W for drawing and 450W for heating in front, middle and back |
| Dimensions of Printer(LxWxH) | 1785mm * 790mm * 1613mm | 70.27″ * 31.1″ * 63.5″ | (LxWxH) |
| Dimensions of Packing(LxWxH) | 2100mm * 970mm * 730mm | 82.67″ * 38.18″ * 28.74″ | (LxWxH) |
| Height of Worktable | 1062mm | 41.81″ |
| Net Weight | 200KG | 440.925lb |
|---|---|
| Gross Weight | 220KG | 485lb |
| Voltage | AC110V+/-10% |
| Operating Environments | Temperature: 20°C-30°C | 68F° – 86°F Humidity: 35%RH-65%RH |
| Power | 200W for drawing and 450W for heating in front, middle and back |
| Dimensions of Printer(LxWxH) | 1785mm * 790mm * 1613mm | 70.27″ * 31.1″ * 63.5″ | (LxWxH) |
| Dimensions of Packing(LxWxH) | 2100mm * 970mm * 730mm | 82.67″ * 38.18″ * 28.74″ | (LxWxH) |
| Height of Worktable | 1062mm | 41.81″ |
| Net Weight | 200KG | 440.925lb |
| Gross Weight | 220KG | 485lb |
| Ink | Sort | UV DTF / Prop 65 |
|---|---|---|
| Media | Capacity | 5 Colors: 1.5L*7/color |
| Maximum Width | 620mm | 24.4″ | |
| Thickness | 1.5mm to 6mm adjustable | |
| Max Roll Weight | 20KG | 44lb | |
| Sort | UV-DTF |
UV Lamp Curing
The temperature and intensity of the UV Lamp is adjustable to provide instant curing of the ink on the adhesive substrate.
Nozzle Heating System
The printhead has the ability to heat, controlling the viscosity in low temperature environments, ensuring proper flow of ink to the head for proper jetting.
Air Cooling Units
7 separate UV LED air cooling units which work in unison to cool the LED lamps while also being able to still run efficiently if one needs to be replaced so your printer is never down.
Laminator-Roller Heating System
The in-line laminator rollers are heated to accelerate drying the printed image and support proper lamination for improved efficiency.
Automatic Heat Rollers
Automatic pressurized heat rollers eliminates human error and produces the ideal amount of pressure for perfect lamination between the A + B film and prevents skewing.

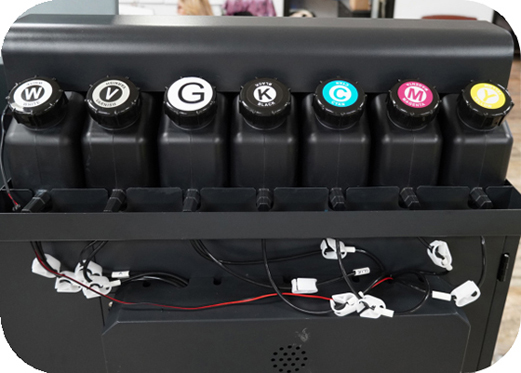

Ink Supply System
The printer incorporates a 1.5 Liter bulk supply system to ensure continuous printing of large production needs and permits on the fly refilling. The white ink reservoir has a continuous agitator to ensure that there is no settling of white ink particles in the tank.

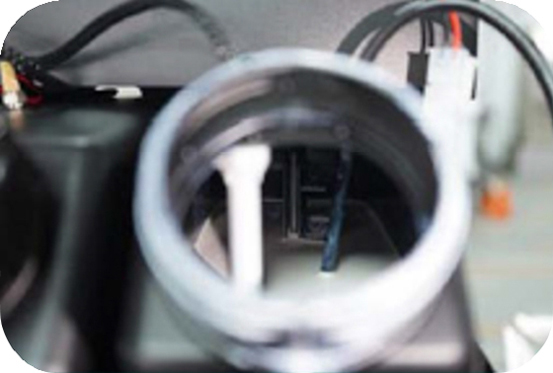

White Ink Recirculation
The STS S604 has a built in white ink recirculation system to prevent white ink from clogging the print heads. This ensures uninterrupted, continuous production.
Adaptive Vacuum Settings
5 various speed settings for ideal suction from the vacuum plate to properly hold down the film which reduces the likeness of head strikes and prevents the film from leaving residue on the print head.
